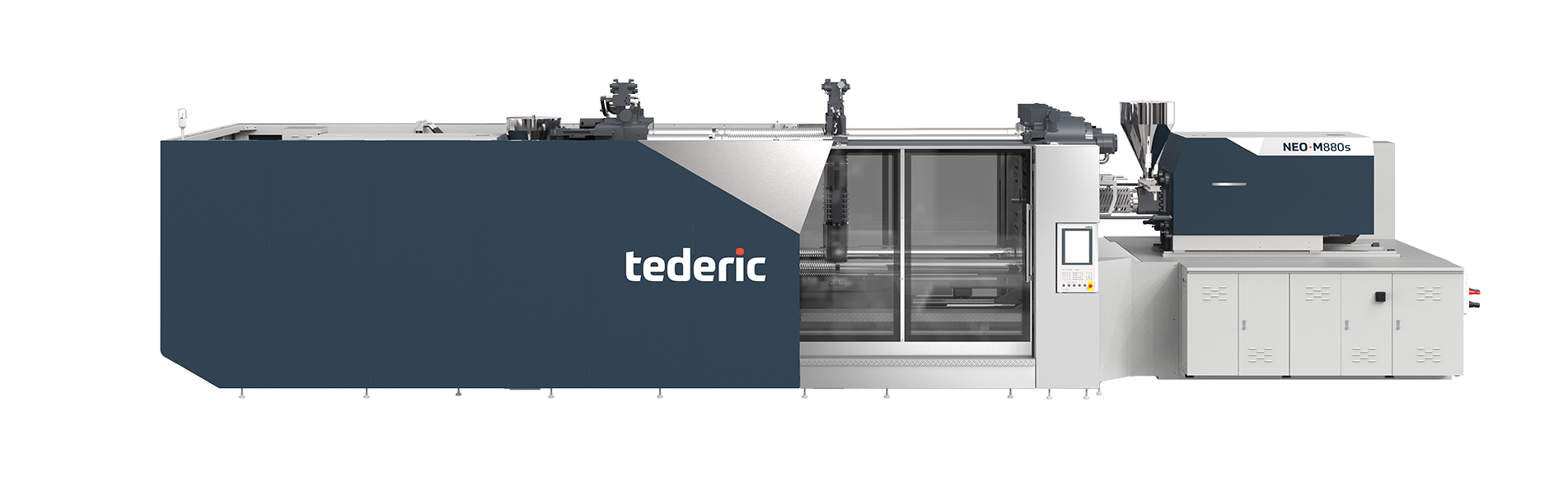

The NEO Ms horizontal injection molding machine with rotary turntable, the winner of the Industry Innovation Award, has a compact mechanical structure, excellent performance, and easy multi-purpose machine implementation. Customized molding machine with horizontal movement features a two-platen clamping unit and an opposite injection unit. It ensures the molding of complicated dual-color products in a smaller space.

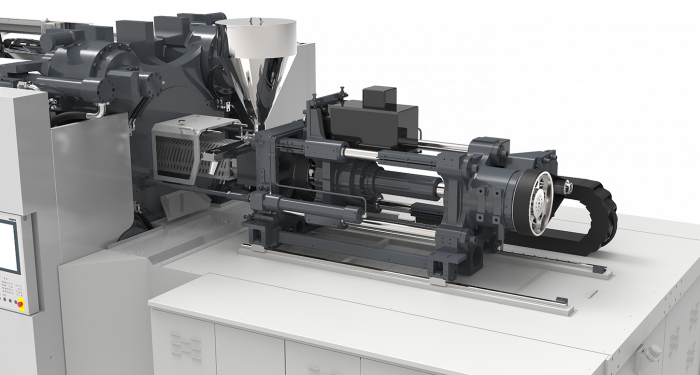

Two opposite single-cylinder precise injection units or high-speed full electric injection unit can be equipped at the same time to meet the requirements of more products characteristics. In addition, opposite injection unit moves synchronously with the moving platen, more efficient is achieved.
Heavy-duty linear guide for the medium platen: supports heavier molds, lower friction resistance, and runs more smoothly.The speed reducer and servo motor drive for the rotation of the medium platen: it can rotate larger and heavier molds, adapt to more special two-color auto parts molds, servo control is more accurate, and energy saving.The medium platen movement is controlled by proportional valve,the max. positional repeatability of mold opening and the medium platen ≤1 mm.

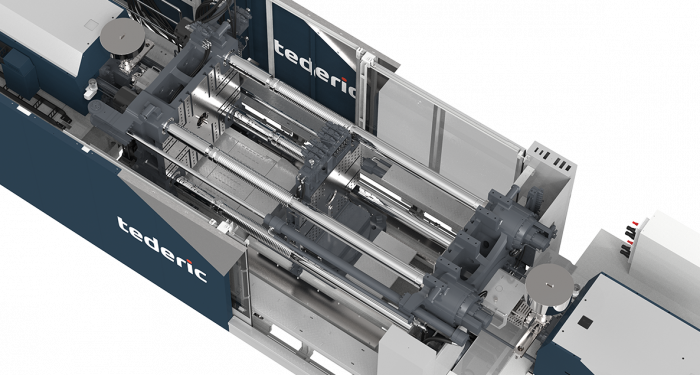

The built-in short-stroke high-pressure mold clamping cylinder of the new two-platen machine can quickly establish the clamping force, and the force on the mold is more balanced.
It can be equipped with Multimold ™ multi-color technology to realize the function derivation of the machine.

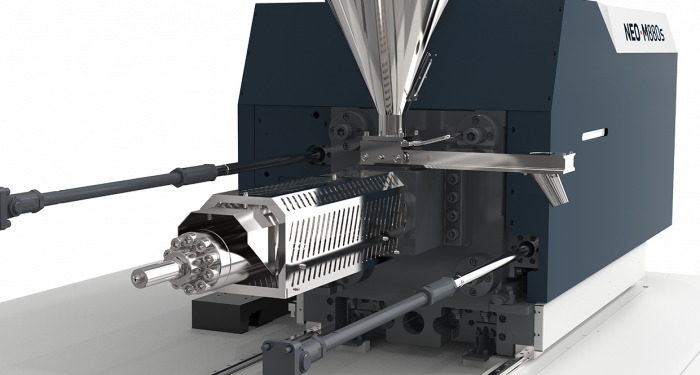

Electric injection unit: The repeat positioning accuracy of the injection position is up to 0.01mm.Single-cylinder one-line injection unit: low injection resistance, low inertia and quick injection response.Parallel injection unit: More stable injection, good sealing.
Manual lubrication pump with pressure realese + detection type grease distributor, uniform layout and elegant.
