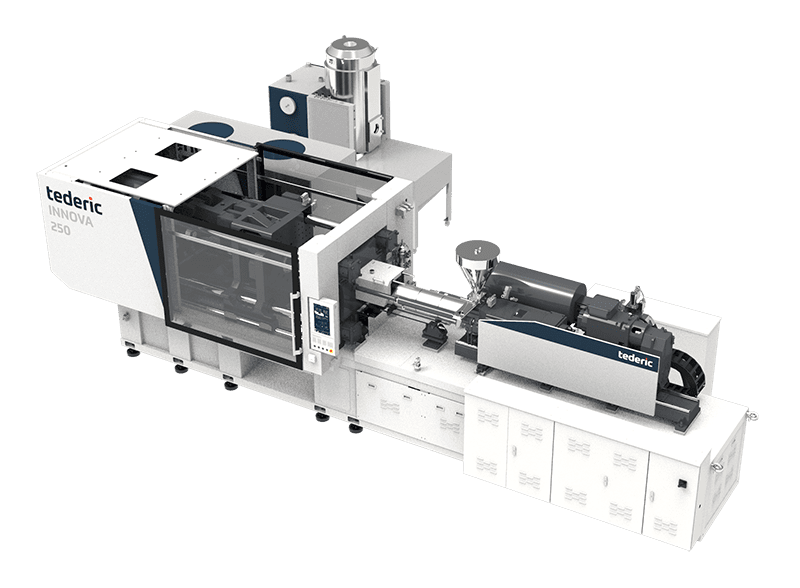

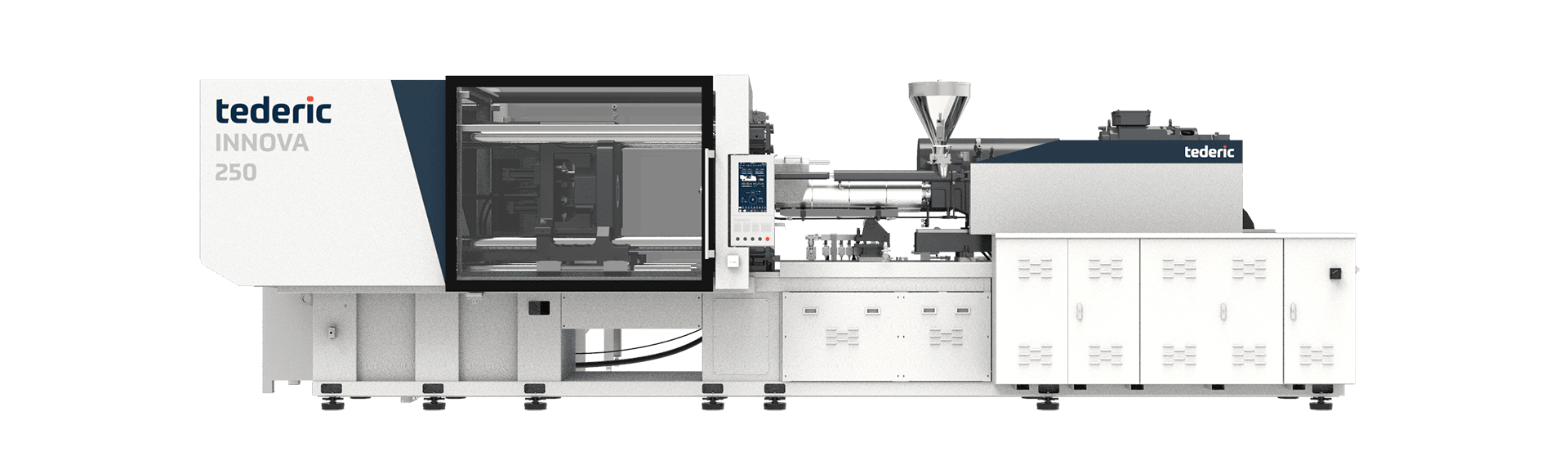

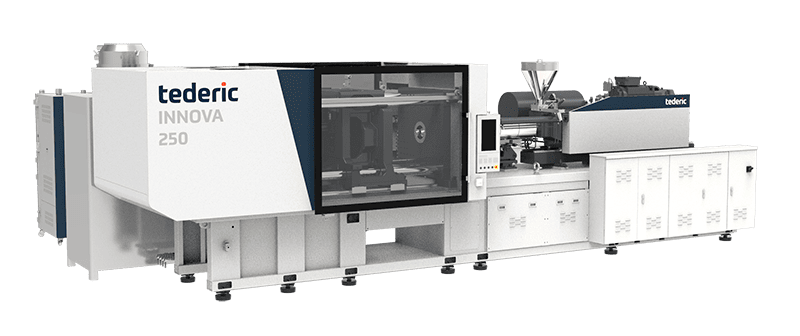

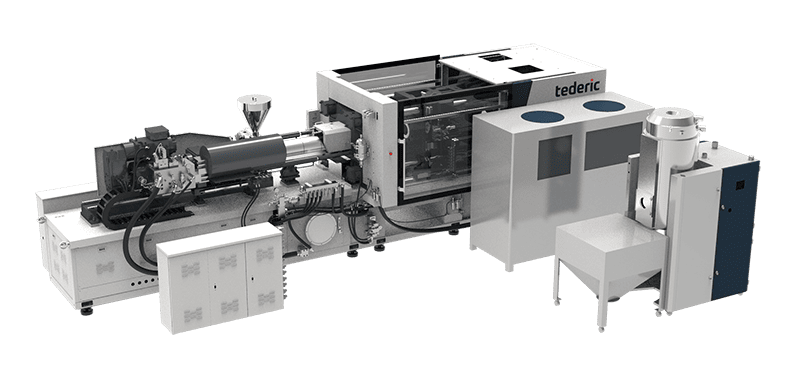

Designed for the packaging industry, the INNOVA 250 Hybrid injection molding machine combines the advantages of electric and hydraulic systems. It delivers extremely fast cycle times of up to 2.9 seconds and injection speeds of 700 mm/s and ensures energy efficiency and environmental sustainability, achieving a perfect balance of speed and green production.

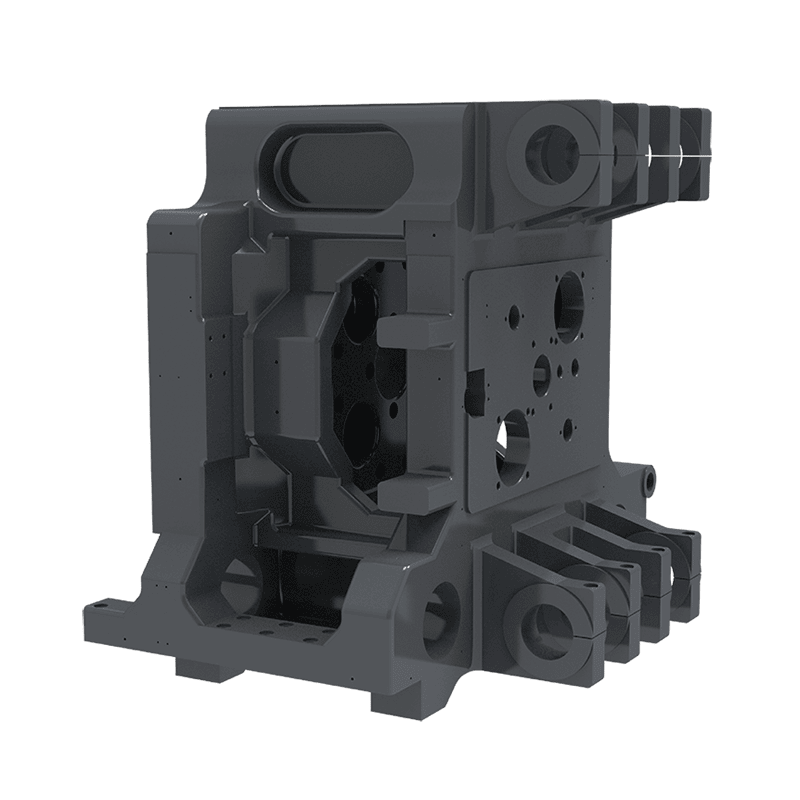

High-speed kinematic toggle design and strong toggle structure design
High-performance electric direct-drive system
Closed-loop toggle oil-lubrication
Covered and temperature-controlled mechanics
Latest control technology – high-speed PID control algorithm
Modern and intuitive Multitouch design with switchable skins
Hardkeys for important machine functions
Free programmable cycle with parallel and overlapping functions for the shortest cycle times
Interfaces: OPC-UA, EUROMAP standards, Peripherals (RS485, 20mA)

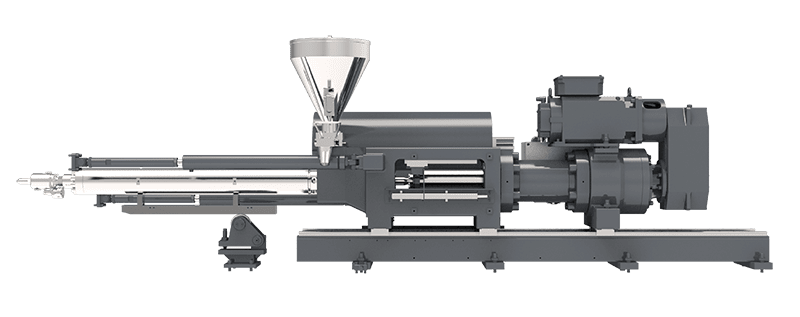

State-of-the-art single cylinder design for high accuracy
High flow piston-accumulator
Injection speed up to 700mm/s
Lowest servo valve response time
High-resolution stroke transducer
Closed-loop PID control for injection speed and pressures
Control CPU task cycle 500µs
Tederic In-house screw design optimized for Polyolefins
27-L/D screw for maximum plasticizing performance even with the shortest cycle times
Double flighted screw for improved plasticizing performance
Combined mixing element for homogenization and masterbatch distribution
Fully hardened screw for improved wear behavior
Electric screw drive and high torque availability for full parallel process
Accurate closed-loop back pressure control by a servo-valve

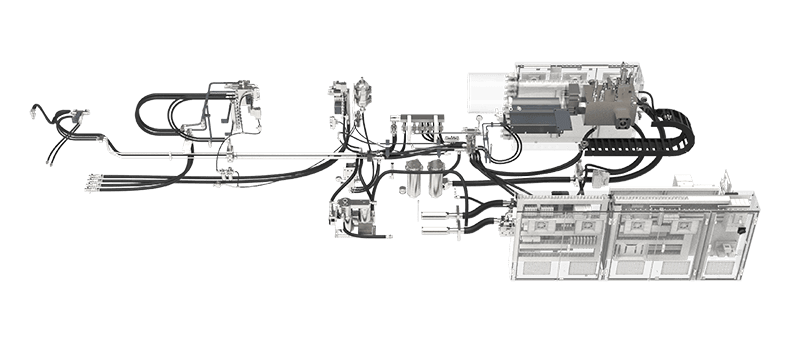

Hydraulic efficiency by
·dedicated pump system
·short and lean hydraulic lines combined with piston accumulator technology
·increased pressure level 300bar to gain performance with a smaller cylinder structure
·latest motor and pump technology provided by high-end partners
Combined with a capacitive energy buffer of the DC-link to reuse brake energy and reduce peak power consumption from the grid
